Truck Dashboard Symbols and Meanings: An Exhaustive Guide

Introduction to Truck Dashboard Symbols

Every driver has encountered it: you are driving on highways and when the time comes to take a very mysterious light that is switched on the dashboard. For truck drivers, these symbols are more than mere alerts they represent the communication between the vehicle and the driver that you cannot do without. One learns to interpret truck dashboard symbols and meanings properly to be a good driver, get the right time to fix a truck, and avoid any kind of costly truck repair.

These indicators and vehicle warning lights are a guide to early sign alerting, letting the driver know whether it is necessary to stop the vehicle or it is just a system check. The different symbols from the engine warning light to the tire pressure indicator are defining a sample dashboard symbols and meanings chart: universal language for truck safety and diagnostics.

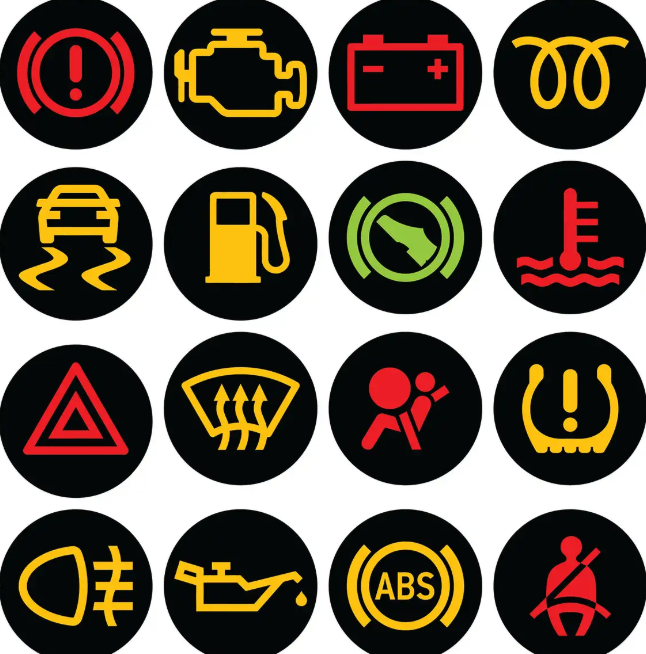

Common Warning Lights and Their Meanings

Modern trucks are equipped with a large selection of truck dashboard lights, each with a specific function or an issue it indicates. To better respond, let us analyze the most common truck warning lights meanings.

Engine Warning Light

Usually, a mini cover engine is used to depict the check engine or engine warning light. It warns about problems with the engine or the vehicle diagnostics system. It may be something as small as an unfastened gas cap to as serious as breaks that need maintenance. On several trucks, this is one of the dashboard symbols to be taken most seriously.

Oil Pressure Warning Light

The oil can symbol signifies that the oil level is low or that there is a low oil pressure condition. If the light comes on, it will tell the driver that there is not enough oil in the engine. The risk of overheating the engine without proper lubrication is the reason for such a warning. This light might also mean a leak in the oil line or a failed sensor. A truck maintenance guide that includes oil level and oil pressure checks will help prevent this type of defect.

Battery Warning Light

The battery alert symbol is the component that most of the times appears as its battery. It warns of problems with the charging system, such as a charging system warning triggered by failing alternators, damaged batteries, or corroded connections. If this is neglected, the truck might not start. Battery troubles can lead to truck failure, and so truck dashboard indicators function as reminders for the drivers for timely truck maintenance.

Tire Pressure Warning Light

This is the symbol of tires with low or high pressure that looks like a horseshoe with a sign of stress emanating from it. TPMS (Tire Pressure Monitoring System) helps drivers in monitoring inflation of tires, one of the safety features of trucks. Tire pressure monitoring system (TPMS) with the allowance of some cars, trucks can find and fix tire problems that are a risk to the driver. Incorrect inflation not only costs more on fuel but can also cause uneven wear and thus, increase the risk of accidents.

ABS Warning Light

The ABS mechanism is a safety feature that is designed to limit the locking of the wheels when abrupt braking occurs. The ABS notification light means that the anti-lock braking system has a fault. Normal brakes may still work, however, truck safety is at risk, especially when driving in the presence of ice. The importance of the right instruments in a truck the same as this one is shown in any truck maintenance guide, which explains proper truck dashboard warning lights.

Freightliner Cascadia Dashboard Key

Understanding Symbol Colors

The instrumentation on truck dashboard warning lights is just as important as the sensors. Knowing the meaning behind each color is crucial for responding appropriately.

• Red Symbols: These symbols indicate critical problems, by example, the brake system light, engine temperature warning, seat belt reminder. These problems need to be solved immediately, they can endanger the driver and other road users.

• Amber/Yellow Symbols: They are alerts for systems that need checking soon, such as the transmission fault light, airbag warning light, or traction control light.

• Green or Blue Symbols: They are just informational indicators such as the high beam indicator, fuel level indicator, or stability control light. These are not warnings but helpful status updates.


Drivers can easily know whether to pull over immediately or just schedule truck maintenance later when they learn the entire truck dashboard symbols and meanings list.

Importance of Prompt Response to Warning Lights

Reacting quickly to the truck dashboard warning lights means a lot in driving responsibly. For instance, if one ignores the warning light for coolant level it could lead to overheating of the engine while a brake pad light that is forgotten could lead to inefficient or compromised braking system.

An illuminated DEF warning light inform diesel truck drivers to replenish Diesel Exhaust Fluid tank which is vital emissions control. Likewise, the glow plug light in diesel trucks enlightens the plugs before the start of ignition.

Mobile alerts about truck dashboard warnings let the user avoid simple issues from erupting to major repairs. For instance:

• Engine temperature warning: By ignoring this, it could lead to a total breakdown of the engine.

• Brake system light: If this happens, both the driver and the cargo are in danger.

• Power steering warning: It can affect turning considerably and cause the truck not to be safe.


Truck dashboard symbols and meanings pdf, or printable truck dashboard symbols and meanings chart, can be a useful reference tool for drivers on the road. Many fleets provide drivers with truck dashboard symbols and meanings images or truck dashboard warning lights pictures for quick identification.

Conclusion

In the age of advanced vehicles, knowing truck dashboard symbols and meanings is more crucial than ever. These truck dashboard warning lights explained are critical magnetometers of the vehicle system’s health. It could be a truck dashboard warning light chart, truck dashboard symbols guide, or a truck dashboard warning light pdf to download with the availability of these resources, drivers can never misinterpret any signals.

These truck dashboard indicators can be seen as just parts of a larger system that helps maintain safety, from the engine warning light to the seat belt reminder. Treating them with care, responding on time, and using a good truck maintenance guide are the key factors to ensuring the safety of truck features, maintaining, and therefore, extending their lifespan and reducing expensive truck repairs.

So, whenever that strange/mysterious light appears, don’t forget to check your truck dashboard symbols and meanings guide because it may save you from a breakdown, a fine, or even an accident. By the usage of handy references like truck dashboard symbols and meanings pdf download and truck dashboard warning lights images download, drivers are sure that they always remain in a good state of preparedness.
